Administrator

Thursday, 20 January 2011 02:28

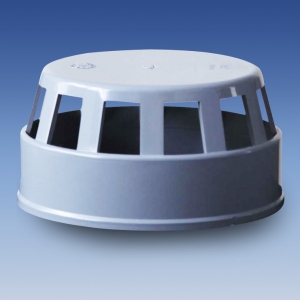

Vent Terminal


Code	Size	D	H	M
DVC2G	50mm	50	48	24
DVC3G	75mm	75	60	25
DVC4	110mm	110	60	25
DVC6	160mm	160	130	60

Published in uPVC Solvent Weld Pipe and Fittings

Thursday, 20 January 2011 02:16

Floor Gully / Floor Trap / Gully Trap


Image	Code	Size	D	d x d1	H	H1	H2
	DFG32G	75x50mm	110	75 x 50	150	50	14
	DFG32GR	75x50mm	110	75 x 50	150	50	14

Published in uPVC Solvent Weld Pipe and Fittings

Thursday, 20 January 2011 02:15

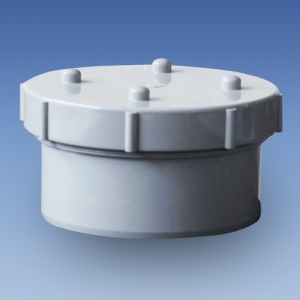

Access Cap & Plug


Code	Size	D	H	H1
DAP2GM	50mm	50	45	24
DAP3GM	75mm	75	48	33
DAP4GM	110mm	110	80	50
DAP6GM	160	160	91	60

Published in uPVC Solvent Weld Pipe and Fittings

Thursday, 20 January 2011 02:14

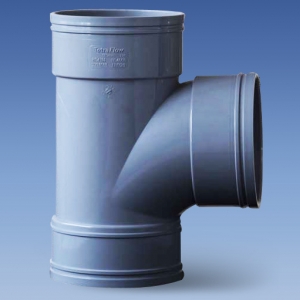

Sweep Branch


Code	Size	D	H	L
DT2G	50mm	50	128	70
DT3G	75mm	75	174	88
DT4	110mm	110	250	130
DT6	160mm	160	303	153
DT8	200mm	200	440	225


Code	Size	D	H	L
DT2GM	50mm	50	128	70
DT3GM	75mm	75	174	88
DT4M	110mm	110	250	130
DT6M	160mm	160	303	153
DT8M	200mm	200	440	225


Code	Size	D	H	L
DT3GD	75mm	75	174	88
DT4D	110mm	110	250	130
DT6D	160mm	160	303	153
DT8D	200mm	200	440	225


Code	Size	D	H	L
DT3GMD	75mm	75	174	88
DT4MD	110mm	110	250	130
DT6MD	160mm	160	303	153
DT8MD	200mm	200	440	225


Code	Size	D x D1	H	L
DT32G	75 x 50mm	75 x 50	170	90
DT42G	110 x 50mm	110 X 50	222	94
DT43G	110 x 75mm	110 x 75	222	107
DT64	160 X 110mm	160 X 110	276	145
DT84	200 X 110mm	200 X 110	407	187
DT86	200 X 160mm	200 X 160	407	212


Code	Size	D x D1	H	L
DT32GM	75 X 50mm	75 X 50	170	90
DT42GM	110 x 50mm	110 X 50	222	94
DT43GM	110 x 75mm	110 x 75	222	107
DT64M	160 X 110mm	160 X 110	276	145
DT84M	200 X 110mm	200 X 110	407	187
DT86M	200 X 160mm	200 X 160	407	212


Code	Size	D x D1	H	L
DT42GD	110 X 50mm	110 X 50	222	94
DT43GD	110 x 75mm	110 x 75	222	107
DT64D	160 X 110mm	160 X 110	276	145


Code	Size	D x D1	H	L
DT42GMD	110 X 50mm	110 X 50	222	94
DT43GMD	110 x 75mm	110 x 75	222	107
DT64MD	160 X 110mm	160 X 110	276	145


Code	Size	D x D1	H	L
DX32G	75 X 50mm	75 X 50	170	90
DX42G	110 x 50mm	110 X 50	222	94
DX43G	110 x 75mm	110 x 75	222	107
DX64	160 X 110mm	160 X 110	276	145
DX84	200 X 110mm	200 X 110	407	187
DX86	200 X 160mm	200 X 160	407	212


Code	Size	D x D1	H	L
DX42GM	110 x 50mm	110 X 50	222	94
DX43GM	110 x 75mm	110 x 75	222	107
DX64M	160 X 110mm	160 X 110	276	145


Image	Code	Size	D	H	L
	DX2G	50mm	50	128	70
	DX4	110mm	110	234	121


Image	Code	Size	D	H	L
	DX2GM	50mm	50	128	70
	DX4M	110mm	110	234	121


Image	Code	Size	D	H	L
	DT4SB	110mm	110	235	125

Published in uPVC Solvent Weld Pipe and Fittings

Thursday, 20 January 2011 02:14

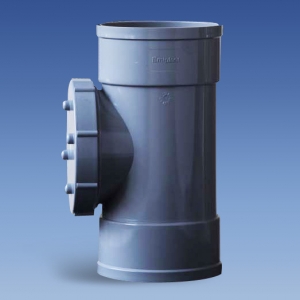

Access Pipe


Code	Size	D	H	L
DTO3G	75mm	75	63	176
DTO4	110mm	110	92	235
DTO6	160mm	160	120	305


Code	Size	D	H	L
DTO3GM	75mm	75	63	176
DTO4M	110mm	110	92	235
DTO6M	160mm	160	120	305

Published in uPVC Solvent Weld Pipe and Fittings

Thursday, 20 January 2011 02:13

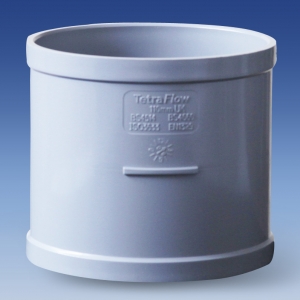

Socket


Code	Size	D	H
DS2G	50mm	50	52
DS3G	75mm	75	85
DS4	110mm	110	106
DS6	160mm	160	122
DS8	200mm	200	208


Image	Code	Size	D	H
	DSS4	110mm	110	106
	DSS6	160mm	160	122

Published in uPVC Solvent Weld Pipe and Fittings

Thursday, 20 January 2011 02:12

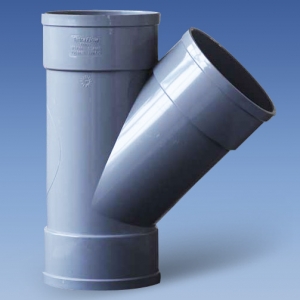

Y-Branch


Code	Size	D	H	H1	L
DTY2G	50mm	50	138	111	65
DTY3G	75mm	75	198	158	97
DTY4	110mm	110	268	213	134
DTY6	160mm	160	396	318	198


Code	Size	D	H	H1	L
DTY2GM	50mm	50	138	111	65
DTY3GM	75mm	75	198	158	97
DTY4M	110mm	110	268	213	134
DTY6M	160mm	160	396	318	198


Image	Code	Size	D	H	H1	L
	DTY4D	110mm	110	268	213	134
	DTY6D	160mm	160	396	318	198


Image	Code	Size	D	H	H1	L
	DTY4MD	110mm	110	268	213	134
	DTY6MD	160mm	160	396	318	198


Code	Size	D x D1	H	H1	L
DTY32G	75 x 50mm	75 x 50	180	133	77
DTY42G	110 x 50mm	110 x 50	220	149	80
DTY43G	110 x 75mm	110 x 75	242	182	120
DTY64	160 x 110mm	160 x 110	300	227	162


Image	Code	Size	D x D1	H	H1	L
	DTY64M	160 x 110mm	160 x 110	300	227	162


Image	Code	Size	D x D1	H	H1	L
	DTY64D	160 x 110mm	160 x 110	380	256	141


Image	Code	Size	D x D1	H	H1	L
	DTY64MD	160 x 110mm	160 x 110	380	256	141


Image	Code	Size	D x D1	H	H1	L
	DXY64	160 x 110mm	160 x 110	300	227	162


Image	Code	Size	D x D1	H	H1	L
	DXY64M	160 x 110mm	160 x 110	300	227	162


Code	Size	D	H	H1	L
DXY2G	50mm	50	126	100	62
DXY3G	75mm	75	204	160	98
DXY4	110mm	110	268	213	134


Image	Code	Size	D	H	H1	L
	DXY2GM	50mm	50	126	100	62
	DXY3GM	75mm	75	204	160	98

Published in uPVC Solvent Weld Pipe and Fittings

Thursday, 20 January 2011 02:11

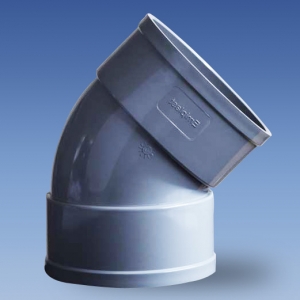

Obtuse Bend


Code	Size	D	H1
DBY2G	50mm	50	77
DBY3G	82mm	82	106
DBY4	110mm	110	135
DBY6	160mm	160	171
DBY8	200mm	200	256


Code	Size	D	H1
DBY2GM	50mm	50	77
DBY3GM	82mm	82	106
DBY4M	110mm	110	135
DBY6M	160mm	160	171
DBY8M	200mm	200	256


Image	Code	Size	D	H1
	DBV4	110mm	110	133


Image	Code	Size	D	H1
	DBV4M	110mm	110	133


Image	Code	Size	D	H1
	DBW4	110mm	110	125


Image	Code	Size	D	H1
	DBW4M	110mm	110	125

Published in uPVC Solvent Weld Pipe and Fittings

Thursday, 20 January 2011 02:09

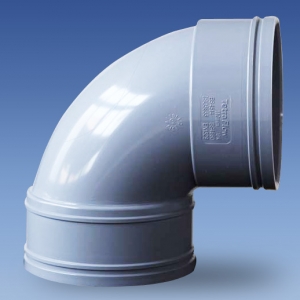

Bend


Code	Size	D	H	H1
DB2G	50mm	50	63	61
DB3G	75mm	75	90	88
DB4	110mm	110	115	115
DB6	160mm	160	160	160
DB8	200mm	200	227	227


Code	Size	D	H	H1
DB2GM	75mm	75	90	88
DB3GM	110mm	110	115	115
DB4M	160mm	160	160	161
DB8M	200mm	200	227	227

Sweep Bend 88° Solvent sockets with access


Code	Size	D	H	H1
DB3GD	75mm	75	90	88
DB4D	110mm	110	115	115
DB6D	160mm	160	161	160
DB8D	200mm	200	227	227

Sweep Bend 88° Solvent sockets / spigot with access


Code	Size	D	H	H1
DB3GMD	75mm	75	90	88
DB4MD	110mm	110	115	115
DB6MD	160mm	160	161	160
DB8MD	200mm	200	227	227


Image	Code	Size	D	H
	DB1.5GK	40mm	40	46

Published in uPVC Solvent Weld Pipe and Fittings

Monday, 20 December 2010 09:15

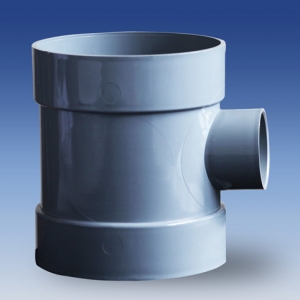

Boss Pipe


Code	Size	D x D1	L
DBP412	110 x 36mm	110 x 36	132
DBP415	110 x 43mm	110 x 43	132
DBP42	110 x 56mm	110 x 56	132

Published in uPVC Solvent Weld Pipe and Pipe and Fittings

«Start Prev12345678910Next End»

Page 5 of 10
